Handling pointer events in custom controls

The S60 platform passes touch events to applications by calling CCoeControl::HandlePointerEventL. The application that receives these events is the one that owns the window.

While this method has been available since S60 3rd Edition, it previously has been an optional method. If you have derived a custom control from CCoeControl, then you must implement the HandlePointerEventL method. Otherwise, your application cannot react to the touch events passed to it.

You have to implement at least CCoeControl::HandlePointerEventL into your own custom UI components. If you have a container control that owns other controls, you have to remember to call the base class implementation of CCoeControl::HandlePointerEventL() before your additional code as illustrated below.

void CMyContainerControl::HandlePointerEventL()
    {
    // Remember to call base class implementation
    CCoeControl::HandlePointerEventL();

    // Your additional code here
    // ...
    }

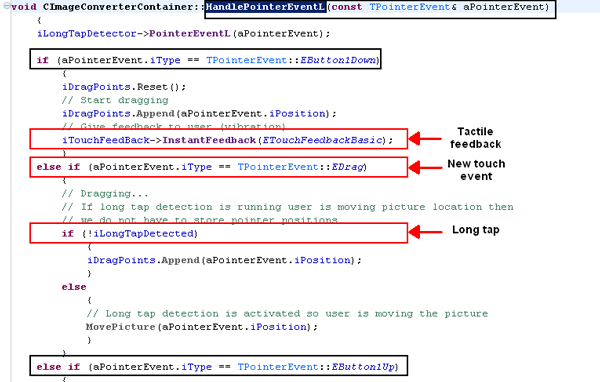

The following figure illustrates changes in code for S60 5th Edition. Items marked with a black frame indicate usage of features in earlier editions, and items marked with a red frame are new features.

Figure: CCoeControl::HandlePointerEventL usage in S60 5th Edition

To handle pointer events in your custom control:

1. In your custom control header file, include the CCoeControl::HandlePointerEventL method.

       public: // from CCoeControl
       void HandlePointerEventL(const TPointerEvent& aPointerEvent);

2. In your custom control, implement the CCoeControl::HandlePointerEventL method.

   void CMyControl::HandlePointerEventL(const TPointerEvent& aPointerEvent)
       {
       switch( aPointerEvent.iType )
           {
           case TPointerEvent::EButton1Up:
               {
               // Is the pointer position on this component?
               if (Rect().Contains(aPointerEvent.iPosition))
                   {
                   SetFocus(ETrue);
                   // Tell container control that this is focused control
                   CMyContainerControl* parent = static_cast<CMyContainerControl*>(Parent());
                   parent->SetLastFocusedControl(this);
                   }
               break;
               }
           default:
               {
               break;
               }
           }
       }

   By default, the S60 platform only passes EButton1Down and EButton1Up events to HandlePointerEventL. In order to enable drag events, see Enabling additional touch events for your application.

3. In your custom container control header file, include the CCoeControl::HandlePointerEventL method.

   void HandlePointerEventL(const TPointerEvent& aPointerEvent);

4. In your custom container control, implement the CCoeControl::HandlePointerEventL method.

   void CMyContainerControl::HandlePointerEventL(const TPointerEvent& aPointerEvent)
       {
       // Check if touch is enabled or not
       if( !AknLayoutUtils::PenEnabled() )
           {
           return;
           }

       // Remove last focus
       if (iLastFocusedControl)
           {
           iLastFocusedControl->SetFocus(EFalse);
           }

       // Call base class method, that forwards pointer event the right child
       // component
       CCoeControl::HandlePointerEventL(aPointerEvent);

       // Check all button up cases again
       if (aPointerEvent.iType == TPointerEvent::EButton1Up)
           {
           // Find which control was focused / received pointer event
           CCoeControlArray::TCursor cursor = Components().Begin();
           CCoeControl* ctrl = NULL;
           TInt counter = 0;
           while ((ctrl = cursor.Control<CCoeControl>()) != NULL)
               {
               if (ctrl->Rect().Contains(aPointerEvent.iPosition))
                   {
                   // Set focused index for the scroll bar
                   iFocusedIndex = counter;
                   break;
                   }
               cursor.Next();
               counter++;
               }
           }

       // Do drawing
       UpdateScrollBarFrameL();
       DrawNow();
       }

   Note: For information on the PenEnabled method, see Checking for touch support at runtime.

• Features introduced by S60 5th Edition:

  • Optional TPointerEvent::EDrag for receiving events indicating that a mobile device user is dragging it across the screen

    For more information on this and other touch event options, see Enabling additional touch events for your application.

  • Optional MTouchFeedback observer for sending a vibration when a mobile device user touches a control with the feedback interface

    For more information on tactile feedback, see Tactile feedback.
